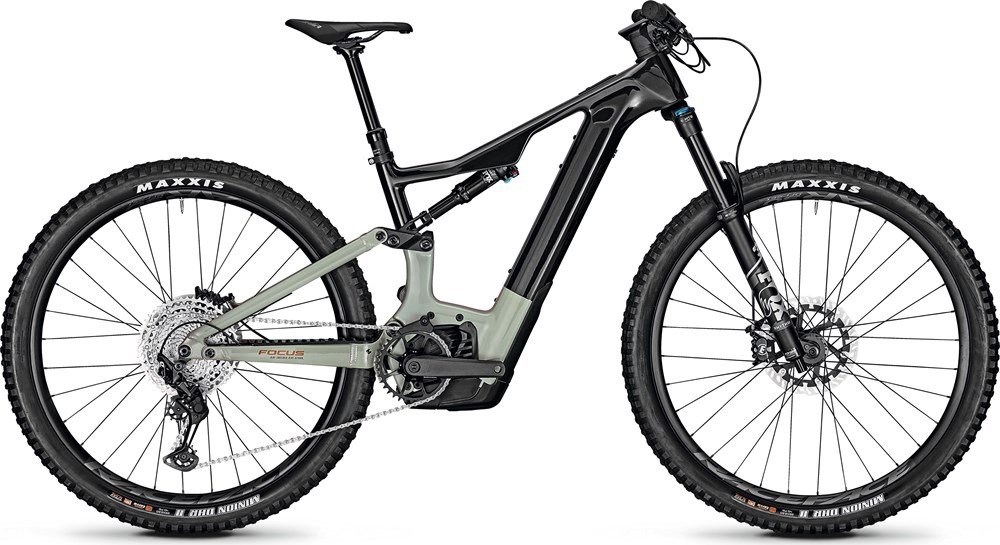

Focus F24 Jam2 8.8
Up your game on any trail!
Super powerful and dynamic Bosch Performance Line CX e-drive: Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 8.8 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. The JAM² 8.8 features the Bosch System Controller, wireless Mini Remote and Kiox display.
Geometry for maximum fun on all types of trails: The carbon frame with alloy chainstays makes the JAM² 8.8 light and nimble. Battery and drive unit are perfectly integrated into the e-MTB's frame giving it a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the JAM² 8.8 more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 8.8 according to your riding preferences from 65.5° to 64.5°.
Full control in any situation: When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 8.8, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.
Up your game on any trail!
Super powerful and dynamic Bosch Performance Line CX e-drive: Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 8.8 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. The JAM² 8.8 features the Bosch System Controller, wireless Mini Remote and Kiox display.
Geometry for maximum fun on all types of trails: The carbon frame with alloy chainstays makes the JAM² 8.8 light and nimble. Battery and drive unit are perfectly integrated into the e-MTB's frame giving it a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the JAM² 8.8 more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 8.8 according to your riding preferences from 65.5° to 64.5°.
Full control in any situation: When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 8.8, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.
Up your game on any trail!
Super powerful and dynamic Bosch Performance Line CX e-drive: Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 8.8 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. The JAM² 8.8 features the Bosch System Controller, wireless Mini Remote and Kiox display.
Geometry for maximum fun on all types of trails: The carbon frame with alloy chainstays makes the JAM² 8.8 light and nimble. Battery and drive unit are perfectly integrated into the e-MTB's frame giving it a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the JAM² 8.8 more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 8.8 according to your riding preferences from 65.5° to 64.5°.
Full control in any situation: When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 8.8, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.
-
FRAME Carbon front triangle, aluminium rear triangle, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK 160 mm
SHOCK FOX Float DPS, 210 / 55 mm, hardware: 25.0 x 8.0 mm, no Bushing
MOTOR Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
BATTERY WATT-HOURS 750 Wh
BATTERY AMPERE HOURS 20,8 Ah
DISPLAY Bosch System Controller + Mini Remote + Kiox 300
SHIFTER Shimano Deore XT SL-M8100, 12-speed
REAR DERAILLEUR Shimano Deore XT M8100, 12-speed
SPROCKET Shimano Deore CS-M6100, 12-speed
CHAIN Shimano Deore CN-M6100, 12-speed
CRANKSET Samox EC40 ISIS
TRANSMISSION OF DRIVE front: 36, rear: 10-51
BOTTOM BRACKET Integrated in Drive Unit
HANDLEBAR Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
SADDLE Selle Italia X3
SEATPOST Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER Magura MT5, hydraulic disc brake
BRAKE LEVER Magura MT5
BRAKE Disc
RIMS RaceFace AR30 Offset
REAR HUB Novatec D462, 12x148 mm
FRONT HUB Novatec D041, 15x110 mm
TIRES Maxxis Minion DHR II, 2.6, 66-622,Maxxis Minion DHR II, 2.6, 66-622, EXO+
GEARS 12
BIKE WEIGHT INCL. BATTERY IN KG. 24
